Researchers demonstrate novel, tunable nanoantennas

7/14/2014

Kimani ToussaintA University of Illinois research team led by MechSE associate professor Kimani Toussaint has developed novel, metal, pillar-bowtie nanoantenna (p-BNA) array template on 500-nanometer tall silicon dioxide (glass) pillars. This work has been published in Nature Communications.

Written by

Kimani Toussaint
Kimani Toussaint
Kimani Toussaint
A University of Illinois research team led by MechSE associate professor Kimani Toussaint has developed novel, metal, pillar-bowtie nanoantenna (p-BNA) array template on 500-nanometer tall silicon dioxide (glass) pillars. This work has been published in Nature Communications.

The team—which includes ECE PhD alumnus Brian Roxworthy as first author, as well as Abdul Bhuiya (ECE M.S. student), Xin Yu (ECE post-grad), and K.C. Chow (MNTL research engineer)—also demonstrated that the gap size for either individual or multiple p-BNAs can be tuned down to approximately 5 nm (roughly 4x smaller than what is currently achievable using conventional electron-beam lithography techniques).

"Recently, there has been a lot of interest in fabricating metal-based nanotextured surfaces that are pre-programmed to alter the properties of light in a specific way after incoming light interacts with it," Toussaint said. "For our approach, one can take a nanoarray structure that was already fabricated and further reconfigure the plasmonic, and hence, optical properties of select antennas. Therefore, one can decide after fabrication, rather than before, how they want their nanostructure to modify light."

The researchers said the importance of this work is three-fold: 1. It enables tuning of the optical (plasmonic) response of the nanoantennas, down to the level of a single nanoantenna (approximately 250 nanometers across); 2. It could lead to unique, spatially addressable nanophotonic devices for sensing and particle manipulation, for example; and 3. It provides a fertile platform for studying mechanical, electromagnetic, and thermal phenomena in a nanoscale system.

"The dramatic deformation of the nanoantennas we observe is facilitated by strong in-gap plasmonic modes excited by the passing electrons, which

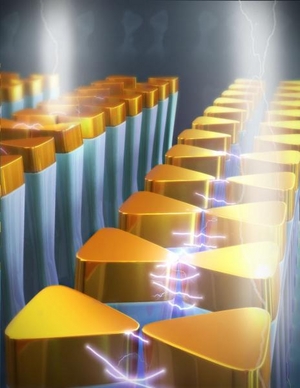

Illustration of the pillar-based Au bowtie nanoantenna arrays undergoing selective actuation due to an electromagnetic-induced force.
Illustration of the pillar-based Au bowtie nanoantenna arrays undergoing selective actuation due to an electromagnetic-induced force.
Illustration of the pillar-based Au bowtie nanoantenna arrays undergoing selective actuation due to an electromagnetic-induced force.
give rise to nanoNewton-magnitude gradient forces on the constituent metal particles," Roxworthy said. "Our work thus paves the way for new kinds of optomechanical systems whereby plasmonic field enhancement can actuate mechanical motion. On a fundamental level, our work demonstrates electron-beam based manipulation of nanoparticles an order of magnitude larger than previously possible, using a simple SEM operating at only a fraction of the electron energies of previous work."

The team demonstrated that an electron beam from a standard scanning electron microscope (SEM) can be used to deform either individual p-BNA structures or groups of p-BNAs within a sub-array with velocities as large as 60 nanometers per second. A photonic-crystal fiber was used to generate (quasi-white light) supercontinuum to probe the spectral response of select regions within the array.

The team believes that the relatively high aspect ratio (pillar height-to-thickness) of 4.2 for the p-BNAs, along with a significant thermal contribution, permit sufficient compliance of the pillars to be actuated by electron-beam-induced gradient forces. Based on the observed experiments, the gradient force is estimated to be on the order of nanoNewtons.

"Our fabrication process shows for the first time an innovative way of fabricating plasmonic nanoantenna structures under the SEM, which avoids complications such as proximity effects from conventional lithography techniques," Bhuiya said. "This process also reduces the gap of the nanoantennas down to ~5 nm under SEM with a controlled reduction rate. With this new fabrication technique, it opens an avenue to study different phenomena which leads to new exciting research fields."
