WMS - Drill Press
Drill Press
This "smart" drill press can be used to drill holes in materials like wood, plastic and glass. The drill press features variable speeds that are automatically adjusted based on the application.

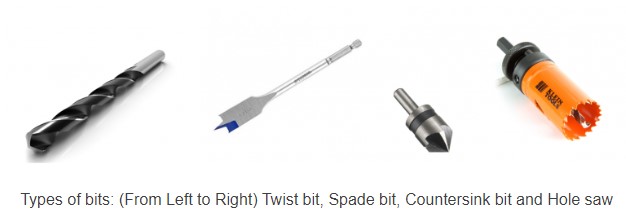

A number of different types of bits like twist bits, spade bits, countersink bits and hole saws are available for use on the drill press. Twist bits are used for drilling smaller sized holes of fixed diameters. Spade bits have a pointed tip and are used to drill holes of larger diameters in the work pieces. Spade bits are used for rough boring and are not recommended for fine woodworking. Countersink bits can be used to countersink the top surface of the work piece so that fasteners can sit flush with the surface. Hole saws are used to make large holes in thin materials. The saws remove material only along the circumference and do not cut up the core like twist and spade bits. Hole saws have a central twist bit and a ring shaped saw blade surrounding it.
- Distance to table: 23 1/8” / 587mm (Max.)
- Distance to Base: 40.94” / 1040mm
- Travel: 6”
- Taper: Morse Taper #2 (MT-2)
-
- Size (wood working)(L x W): 16 1/2″ x 16 1/2” (419mm x 419mm)
- Table Tilt (Deg.): -45° to +45°
- Table Rotation (Deg.): 360°
- Column Diameter: 3.62” / 92mm
- Base Size (L x W): 22 1/4” x 17 1/2″ (565mm x 445mm)
- Chuck Size: 5/8” (3-16mm)
